רכזת רשת Link-Master 5-Port Gigabit SWG05

Product Name

5-Port 10/100/1000M Network Switch

Interface

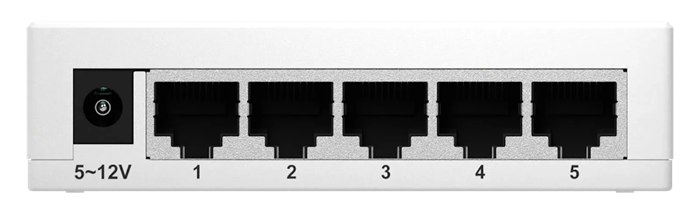

5* 10/100/1000Mbps auto-sensing RJ45 ports(Auto MDI/MDIX)

Feature

Gigabit non-blocking transmission, keeps network fluent.

Support MAC self learning and updating

Network Protocol

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;

IEEE802.3u 100Base-TX;

IEEE802.3ab 1000Base-T;

IEEE802.3x.

Twisted Pair Transmission

10BASE-T: Cat5 UTP (≤100 meter)

100BASE-TX: Cat5 or later UTP (≤100 meter)

1000BASE-T: Cat5 or later UTP (≤100 meter)

Ethernet Port Feature

10/100/1000Base–T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive

Forwarding Mode

Store-and-Forward

Forwarding Rate

7.44Mpps

Back-bound Bandwidth

10Gbps

Buffer Memory

1M

MAC Address Table

2K

Standard Protocol

IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3ab, IEEE802.3z

LED Indicator

Power indicator: PWR (Green);

Network indicator: 1-5(Link/Act)/ (Green)

Power Consumption

Standby State: 0.7W. Max power consumption ＜ 2W

Power Input

AC:100～240V;50~60Hz

Power Output

5V/1A (External power adaptor)

Dimension

83*52*22mm（L*W*H）

Operation TEMP / Humidity

-20~+55°C:5%~90% RH non condensing

Storage TEMP / Humidity

-40~+75°C;5%~95% RH non condensing

Installation Method

desktop type, wall mounted,19-inch 1U cabinet installation

Protection

IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge

IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV

Certification

CCC; CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B;RoHS

Warranty

1 Year warranty
