Supply power to HD network surveillance cameras with Cat5e (PoE);
2x 1000M RJ45 ports; 1x AC input port;
AC input: 100V~240V, 50~60Hz;
Compatible with IEEE 802.3af/at standard;
Coming with the Ethernet network port and PoE output port, and the power input port with lighting-proof function (meet the secondary lightning protection);
Can supply power with the spare line pair (4/5 (+), 7/8 (-) method or the data line pair 1/2(+), 3/6(-) method;
No fan, natural heat dissipation, small, quiet design, suitable for desktop or wall;
|
Product Name
|

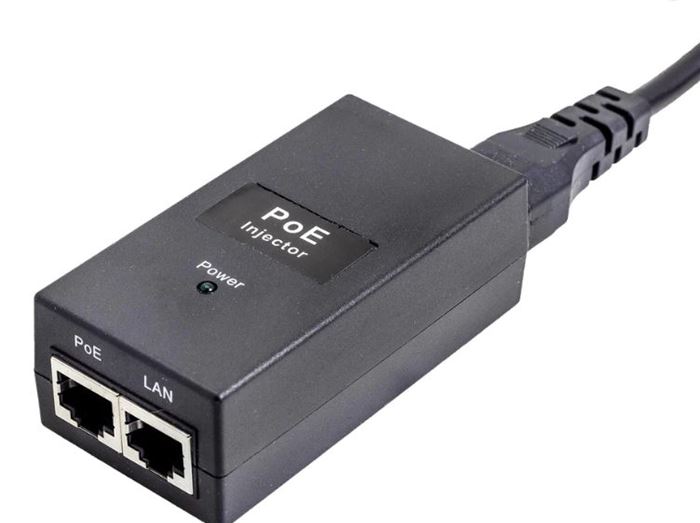

1000M Single Port PoE Injector 30W
|
|
Port Description
|
2x copper cable RJ45 ports, 1x AC input port.
|
|
PoE Power Supply
|
end-span: 1/2,3/6 spare line pair
|
|
Network Medium
|
1000BASE-TX: 5Cat and more UTP (≤100 meters)
|
|
Thermal Protection
|
>100°C
|
|
Performance
|
Working rate:1000Mbps working rate
|
|
Network port protection: meet with IEC61000-4-2(ESD)
|
|
MTBF: 100,000 hours
|
|
PoE Standards
|
IEEE 802.3af/at
|
|
LEDs Indicator
|
PoE working status
|
|
Power
|
Total power: 30W
|
|
PoE port power: 30W
|
|
AC input voltage: 100~240V
|
|
Output Voltage: 52V
|
|
Dimensions/Weight
|
LxWxH: 108*44*33(mm), 0.14kg
|
|
Working Environment
|
Operating Temperature: -20°～ 55°C , Storage Temperature: -20°～ 75°C
|
|
Working Humidity: 10%～90%, non-condensing
Storage Humidity: 10%～95%, non-condensing
|
|
Warranty
|
CE mark,commercial,FCC Part 15 Class B，RoHS
|
|
1-year warranty
|
