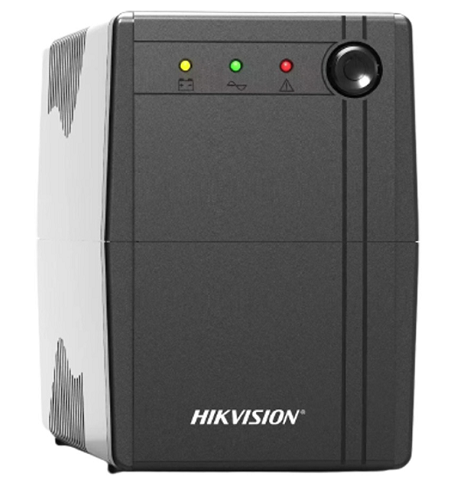

אל פסק Hikvision DS-UPS600 600VA/360W

 Specification
Parameters
Protection Method Overload, discharge, and overcharge protection
Operating Temperature and
Humidity
0 °C to 40 °C (32 °F to 104 °F). Humidity 30% to 90% (non-condensing)
Weight Approx. 4.2 kg (9.26 lb)

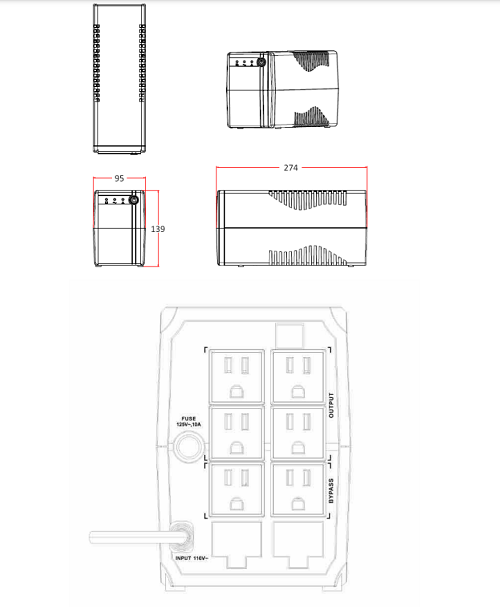

Dimension 274 mm × 95 mm × 139 mm (10.79" × 3.74" × 5.47")
LED Indicator
Working Mode (AC Mode): Solid green
Charging Mode (DC Mode): Solid red
Overloading Mode: Flashing yellow
Alarm
Charging Mode (DC mode): Sounding every 10 seconds
Low Battery: Sounding every second
Overloading Mode: Sounding every 0.5 seconds
Fault: Continuously sounding
Storage Conditions -10 °C to 50 °C (14 °F to 122 °F). Humidity 20% to 95% (non-condensing)
Capacity 600 VA / 360 W
Input Voltage Range (AC mode) 85 VAC to 150 VAC (± 5 VAC)
Input Frequency Range 50/60 Hz
Output Voltage Range (AC
mode)
102 VAC to 132 VAC
Output Voltage (Batt. mode) 110 VAC to 125 VAC (No Load)
Frequency Range (Batt. Mode) 50/60 Hz ± 0.5 Hz
Transfer Time DC to AC ≤ 10 ms; AC to DC ≤ 10 ms
Waveform (Batt. Mode) Charging Mode (DC Mode): PWM
POWER
Battery 12 V/7 Ah × 1
Rechargeable Typical recharge time: 10 to 16 hours

*הנתונים לפי אתר היצרן.
