Feature Description

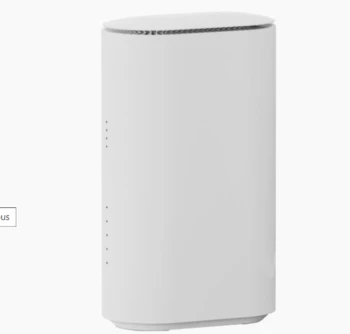

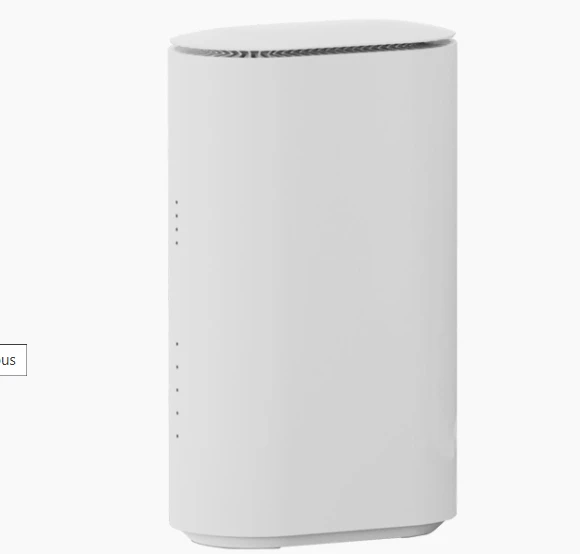

Form Factor 5G Router
Interface
Network 1*1000Mbps LAN
Voice 1*RJ11
SIM 2FF or 4FF(DUAL SIM OPTIONAL)
Button Reset/WPS/Battery level/Power
Battery (optional) 7.4V(2000mAh X 2)
External antenna TS9
Type C Firmware upgrade
DC Input voltage: 12V-1.5A
Solution 5G Module RG500U-EA
WIFI Module (optional) FC06E
5G/4G/3G
Band
5G NR NSA n1/ 3/ 7/ 38/ 40/ 41/ 77/ 78/ 79
5G NR SA n1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/ 40/ 41/ 71/ 77/ 78/ 79
(n5 n71 optional)
LTE-FDD B1/ 2/ 3/ 4/ 5/ 7/ 8/ 20/ 28A/ 28B/ 66
LTE-TDD B38/ 40/ 41
WCDMA B1/B2/B5/B8
LTE Feature
Max： CA：DL 3CC，UL 2CC
FDD：DL Cat 12，UL Cat 13
TDD：DL Cat 12，UL Cat 13
Support 1.4/3/5/10/15/20 MHz bandwidth
DL support 2 × 2 MIMO
Max： DL 600 Mbps UL 150 Mbps
UMTS Feature Max: DL 42.2 Mbps UL 11Mbps
5G NR Feature
DL 4 × 4 MIMO：n1/ 3/ 7/ 38/ 40/ 41/ 77/ 78/ 79 UL 2 × 2
MIMO：n38/ 40/ 41/ 77/ 78/ 79
DL 2 × 2 MIMO：n5/ 8/ 20/ 28/ 71 (n5 n71 optional)
NSA ：MAX DL 2.6 Gbps, MAX UL 575 Mbps
SA ：MAX DL 2 Gbps, MAX UL 1 Gbps
WLAN
(optional)
Wi-Fi antenna Internal antenna
Wi-Fi protocol IEEE 802.11 a/b/g/n/ac/ax
Frequency 2.4 GHz WLAN: 2.400–2.4835 GHz
5 GHz WLAN: 5.150–5.850 GHz
Rate 1.7 Gbps data rate (2 × 2 + 2 × 2 11ax DBS)
2.4G Max. transmitter
power for Wi-Fi
802.11b/1Mbps 21dbm
802.11g/54Mbps 19dbm
802.11n/HT40 MCS7 18dbm
802.11ax/HE40 MCS11 17dbm
5G Max. transmitter
power for Wi-Fi
802.11a/54Mbps 18dbm
802.11n/HT40 MCS7 18dbm
802.11ac/VHT80 MCS9 17dbm
802.11ax/HE80 MCS11 16.5dbm
Software
Language Chinese & English
APN Setting Supported
Device Settings Supported
WIFI Settings (optional) Supported
Routing Settings Supported
Firewall Settings Supported
Envionment Operating temperature -20 to 60° C
Storage temperature -40 to 85° C
