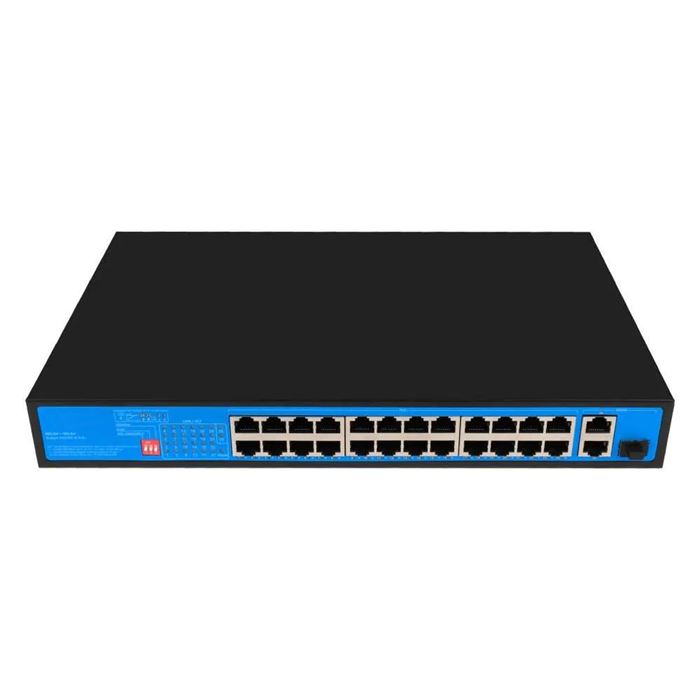

24*10/100/1000M + 2*1000M SFP Port PoE Switch,1-24 ports support IEEE 802.3af/at;
Comply with IEEE 802.3, IEEE 802.3u,IEE802.3ab,IEE802.3z standards;
PoE port support AF/AT intelligent recognition. Standard power is 15.4W/port, Maximum power: 30W/port;
Support AI Watchdog, Port self-healing, VLAN, extend 300meter distance, Auto Speed Change, Priority port & reduce the after-resale;
Supports POE devices such as wireless access points (APs) and network surveillance cameras through Category 5/6 Ethernet cables;
The power supply total is 300W;
|
Model
|
|
|
Fixed Port
|
24*10/100/1000 Base-T/TX PoE ports (Data/Power)
2*100/1000Base-X uplink SFP ports (Data)
|
|
POE Port
|
Port 1-24 support PoE @ IEEE802.3af/at
|
|
Feature
|
With the Dial code switch, support port priority by default.
E: AI Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100 meters;
V: Turn on, 1-4 Port support each port Isolation & VLAN;
D: Turn on, 1-4 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale.
|
|
Fan
|
Non-Fan, silent working status can satisfy more users with different requirement.
|
|
Network Protocol
|
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;
IEEE802.3u 100Base-TX;
IEEE802.3ab 1000Base-T;
IEEE802.3z 1000base-X;
IEEE802.3u 100Base-FX;
IEEE802.3x.
|
|
PoE Standard
|
IEEE802.3af/at
|
|
Ethernet Port Feature
|
10/100/1000Base–T(X) 10/100/1000 Base-T automatic detection, full/half Duplex MDI/MDI-X adaptive
|
|
Fiber Port Feature
|
Gigabit SFP Port (Fiber module is not included, need to order separately, module options include single/multi-mode, single/dual fiber, LC)
|
|
Forwarding Mode
|
Store and Forward
|
|
Switching Capacity
|
52Gbps (Non-blocking)
|
|
Forwarding Rate
|
38.69Mpps
|
|
MAC
|
8K
|
|
Buffer Memory
|
4M
|
|
Twisted Pair Transmission
|
10BASE-T: Cat5 UTP (≤250 meter)
100BASE-TX: Cat5 or later UTP (≤100 meter)
1000BASE-TX: Cat5 or later UTP (≤100 meter)
|
|
Power Supply Pin
|
Default 1/2(+), 3/6(-);
|
|
MAX / AVERAGE Power Per Port
|
30W/15.4W
|
|
Total PWR / Input Voltage
|
300W (100-240V)
|
|
Power Consumption
|
Standby:<5W; Full load:<300W
|
|
LED Indicator
|
Power indicator: PWR (Green);
Network indicator: 1-24(Link/Act)/ (Green),25-26(Link/Act)/ (Green);
POE indicator: PoE (Orange)
|
|
Power Supply
|
Built in switching power supply, AC100~240V 50-60Hz
|
|
Operation TEMP / Humidity
|
-20~+55°C:5%~90% RH non condensing
|
|
Storage TEMP / Humidity
|
-40~+75°C;5%~95% RH non condensing
|
|
Dimension
|
330*220*44mm
|
|
Net /Gross Weight
|
<3kg / <4kg
|
|
Installation Method
|
desktop type, wall mounted,19-inch 1U cabinet installation
|
|
Protection
|
IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge
IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV
|
|
Protection Level
|
IP30
|
|
Certification
|
CCC; CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B;RoHS
|
|
Warranty
|
1 years, lifetime maintenance.
|
